Specification Features:

• 6N137 high-speed Opto Coupled to ensure high speed without losing steps
• For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor
• Automatic half-decay
• Excitation mode: synchronizing, half step, 1/8 step, 1/16 step
• Current level is adjustable to meet your application needs

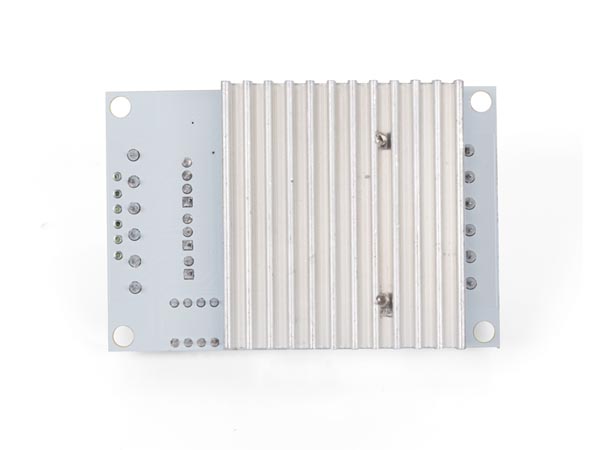

• Large heat sink for good heat dissipation
• Overheating and over-current protection circuit to ensure optimal performance
• Operating voltage: 10 to 35 VDC
• Rated output current: ± 3 A - peak 3.5 A

Dimensions

50 x 75 x 35mm

Weight

80g
