Velleman Hall Effect Magnetic SwitchVelleman Kits

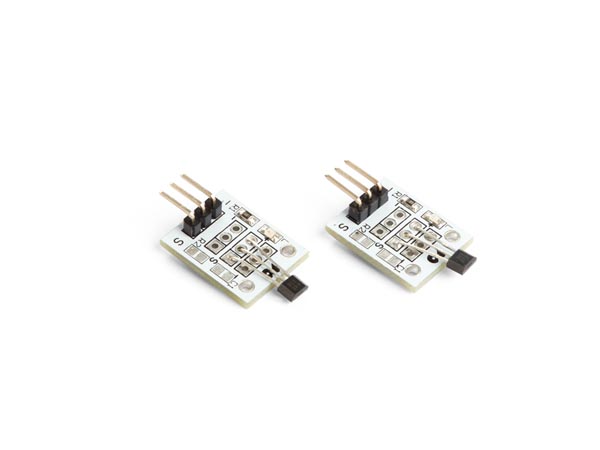

Velleman Hall Effect Magnetic Switch

Specification Features:

  • voltage: 5 VDC
  • connection: 3 pins, +(middle pin), ground and S (data out)
  • output (S): Schmitt Trigger, Active Low
  • activation: 30 Gauss
  • deactivation: 10 Gauss
  • LED indicator: ON when activated

Read the fully Illustrated Assembly Manual for VMA313

PDF Download


Dimensions (PCB)

25 x 15mm

Weight

2g


The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output.
Order Code Each
VMA313Velleman Hall Effect Magnetic Switch3.39
