Velleman 3-Axis Digital Acceleration Sensor

Clearance Lines

Company Profile

WebShop

Specification Features:

+-2g/+-4g/+-8g dynamically selectable full-scale
Output data rates (ODR) from 1.56 Hz to 800 Hz
12-bit and 8-bit digital output
I2C digital output interface (operates to 2.25 MHz with 4.7 kO pullup)
Two programmable interrupt pins for six interrupt source
Three embedded channels of motion detection
Orientation (portrait/landscape) detection with set hysteresis
High pass filter data available real-time

Read the fully Illustrated Assembly Manual for WPSE208

Dimensions (PCB)

Weight

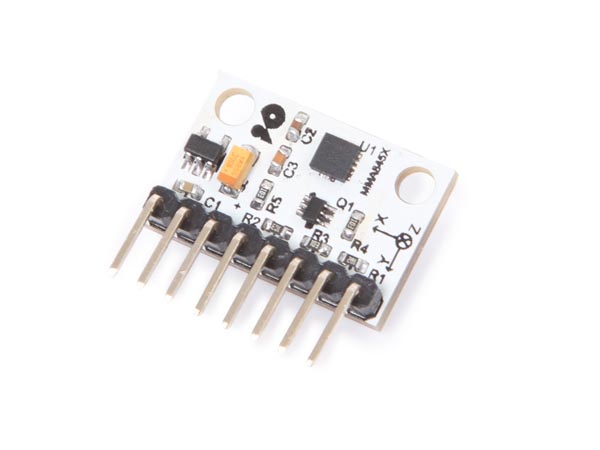

The MMA8452Q accelerometer module is a smart low-power, three-axis, capacitive MEMS accelerometer with 12 bits of resolution. It is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. It has user selectable full scales of +-2g/+-4g/+-8g with high pass filtered data, as well as non filtered data available real-time.

Order Code		Each
WPSE208	Whadda 3-Axis Digital Acceleration Sensor	6.65
