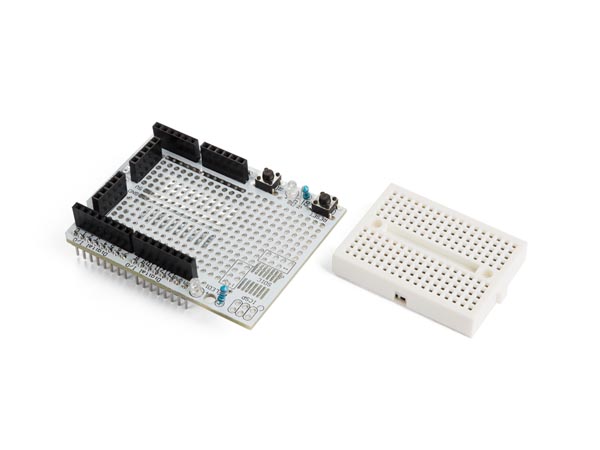

Velleman Protoshield and Breadboard for UNO R3Velleman Kits

Velleman Compatible Expansion Board for ARDUINO® UNO R3

Specification Features:

  • 1.0 Arduino Pinout
  • reset button
  • free to use button + LED circuit
  • ICSP connector location
  • 14 pin SMD footprint
  • 20 pin through-hole footprint
  • 170 holes self-adhesive breadboard included
  • compatible with: Leonardo, Uno, Mega, Classic

Read the fully Illustrated Assembly Manual for VMA201

PDF Download


Dimensions (PCB)

mm

Weight

g


The ProtoShield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with the small solderless breadboard to quickly test circuit ideas without having to solder. It has extra connections for all of the Arduino® I/O pins, and provides space to mount through-hole and surface mount.
Order Code Each
VMA201Velleman Protoshield and Breadboard for for ARDUINO® UNO R34.47
