Velleman ATmega328 NANO Development Board

Specification Features:
  • microcontroller: Atmel ATmega168 or ATmega328
  • operating voltage: 5 VDC
  • input voltage (recommended): 7-12 VDC
  • input voltage (limits): 6-20 VDC
  • digital I/O pins: 14 (of which 6 provide PWM output)
  • analogue input pins: 8
  • DC current per I/O pin: 40 mA
  • flash memory: 16 kB (ATmega168) or 32 kB (ATmega328)
  • SRAM: 1 kB (ATmega168) or 2 kB (ATmega328)
  • EEPROM: 512 bytes (ATmega168) or 1 kB (ATmega328)
  • clock speed: 16 MHz

Read the fully Illustrated Assembly Manual for WPB102

PDF Download


Dimensions (PCB)

45 x 18mm

Weight

5g

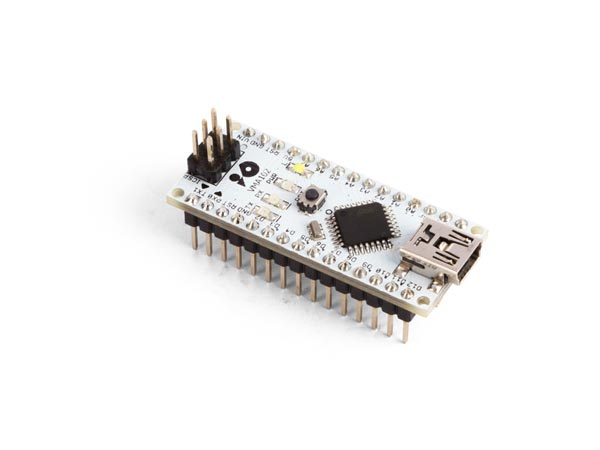

The VMA102 (Arduino® Compatible Nano 3.0) is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) orATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a mini-B USB cable instead of a standard one.
Order Code   Each
WPB102 Velleman ATmega328 NANO Development Board 13.90
