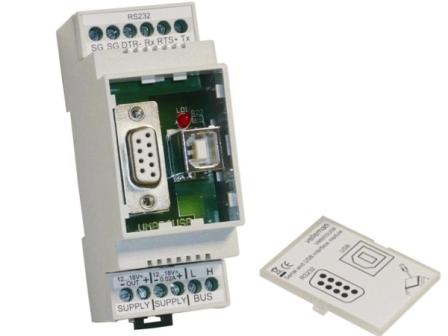

Velleman Velbus DIN-Rail RS232/USB Interface

Clearance Lines

Company Profile

WebShop

Specification Features:

Power supply: 12 - 18Vdc
Standard DIN-rail housing
Includes tutorial in different languages
Compatible with: Microsoft® Vista®, Microsoft® Windows® XP and Windows® 2000
USB:
Power indication
V2.0 compatible (full speed 12Mb/s)
Uses standard Microsoft Windows 'usbser.sys' driver
RS232:
Full duplex RS232C communication with PC

Read the fully Illustrated Manual for VMBRSUSB

Transformer

Case

Dimensions

90 x 36 x 58mm

Weight

80g

Download Velbus Version 8 Software

This Velbus unit can be used to configure and control the VELBUS system through a computer. USB can be used for easy of connection, RS232 can be used for long-line connections or to create custom applications. For most Velbus modules the communication protocol can be downloaded for free. Additional software to up grade and improve this product is available from the Velleman support section on there website.

Velbus Home Automation System for applications and examples of installations download introduction manual
