Velleman Low Voltage LED Light Organ Kit Velleman Kits

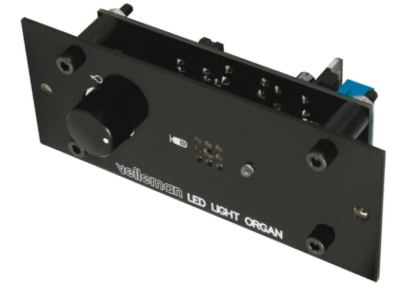

Velleman Low Voltage LED Light Organ Kit

Velleman Low Voltage LED Light Organ Kit

Specification Features:

  • Panel-mount concept: easy to build in
  • Hi-power output
  • Built-in microphone
  • Adjustable sensitivity
  • Blue indicator LED
  • Power supply 12 - 24Vdc 5A Max

Read the fully Illustrated Operating Manual for VM186

PDF Download

Power Supply



Case



Dimensions

100 x 40 x 35mm

Weight

kg

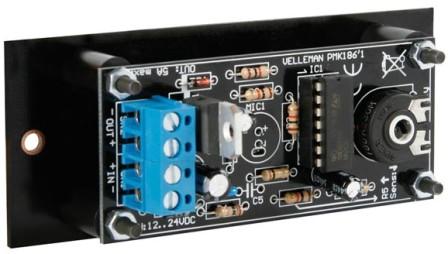

This module has been designed to control any 12 or 24V LED strips or low voltage incandescent lamps for display advertising and light effects. The output drives high power Mosfet which can each sink about 5A. Built in microphone with sensitivity control

Order Code   Each
VM186 Velleman Low Voltage LED Light Organ 13.95
