Velleman RGB Power Slave Module Velleman Kits

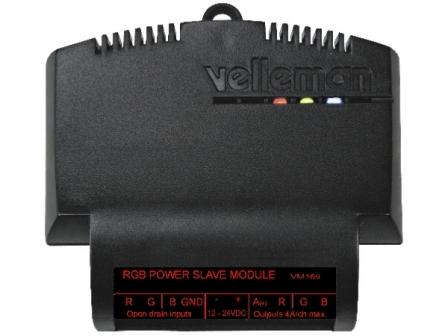

Velleman RGB Slave Module

Specification Features:
  • Add more led tape to your existing controller
  • Every unit adds up to 144W (12V) or 288W (24V)
  • Works with a single power supply or multiple supplies
  • Eases distribution of led tape
  • Allows simultaneous use of 12V and 24V strips
  • Only 4 interconnecting wires required
  • Open collector/drain inputs



Read the fully Illustrated Manual for VM169

 PDF Download

Power Supply

12 - 24VDC / 12A max

Case

Supplied

Dimensions

80 x 70 x 23mm

Weight

kg

This module can be used with VM150, VM151, VM152, VM161 and VM162 to increase their output. Also allowing for  easier distribution and wiring of LED tape. The three outputs drive high power Mosfet's which can each sink about 4A. This module will mimic the function of the Velleman module you have connected.
Velleman have several Light controllers suitable for flexible LED strip. View our comprehensive list of all modules available> Click
Order Code   Each
VM169 Velleman RGB Slave Module 22.95
