Velleman Stereo Amplifier Module 2 x 30W Velleman Kits

Stereo Amplifier Module 2 x 30W

Specification Features:
  • Music power output: 2 x 30W / 4ohm
  • RMS output: 2 x 15Wrms / 4ohm or 2 x 10Wrms / 8ohm
  • Total harmonic distortion: 0.07% (1W / 1kHz)
  • Channel separation: 70dB
  • Frequency response: 7Hz to 60kHz (-3dB)
  • Signal-to-noise ratio: 98dB (A weighted)
  • Input sensitivity: 300mV / 150Kohm
  • Transient suppression on/off switch
  • Overload and short-circuit protection: max. 1h
  • Supply voltage: 2 x 12Vac / 2A

Read the fully Illustrated Manual for VM113

 PDF Download

Transformer

323-012

Case



Dimensions (PCB)

70 x 50mm

Weight

kg

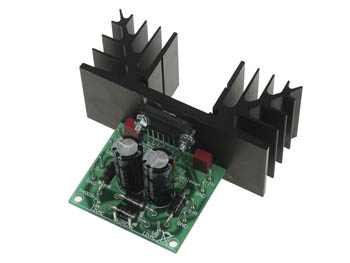

This small amplifier is constructed with the TDA2616 IC, with a maximum supply capability of 2 x 15Wrms (4 ohm) of 2 x 10Wrms (8 ohm). The IC is protected against overheating and short circuits. Additional rectifier and smoothing filter are unnecessary because alternating current can be connected directly with the unit. The VM113 is supplied mounted to the heat sink. For suitable loudspeakers see our range in the sounder section of this website.
Order Code   Each
VM113 Velleman Stereo Amplifier Module 2 x 30W -
