Velleman 1A Power Supply Kit Velleman Kits

Velleman 1A Power Supply Kit

Specification Features:
  • Output current: 1.5A max.
  • Max. dissipation: 15W (cooled)
  • Max. input voltage: 40VDC


Read the fully Illustrated Assembly Manual for K1823

 PDF Download

Transformer

301-065



Suitable Heatsink

171-021


Case   400-352

Dimensions (PCB)

52 x 52mm

 86 x 32mm

Weight

kg



This small power supply provides a regulated voltage, adjustable between 1.5 and 35 volts at 1 Amp. With the LM317 regulator remarkably better ripple and regulation characteristics are given than with conventional regulators. Current limiter and thermal overload protection are included in the IC. Supplied without heat sink.
This kit is also available as a ready assembled module VM124

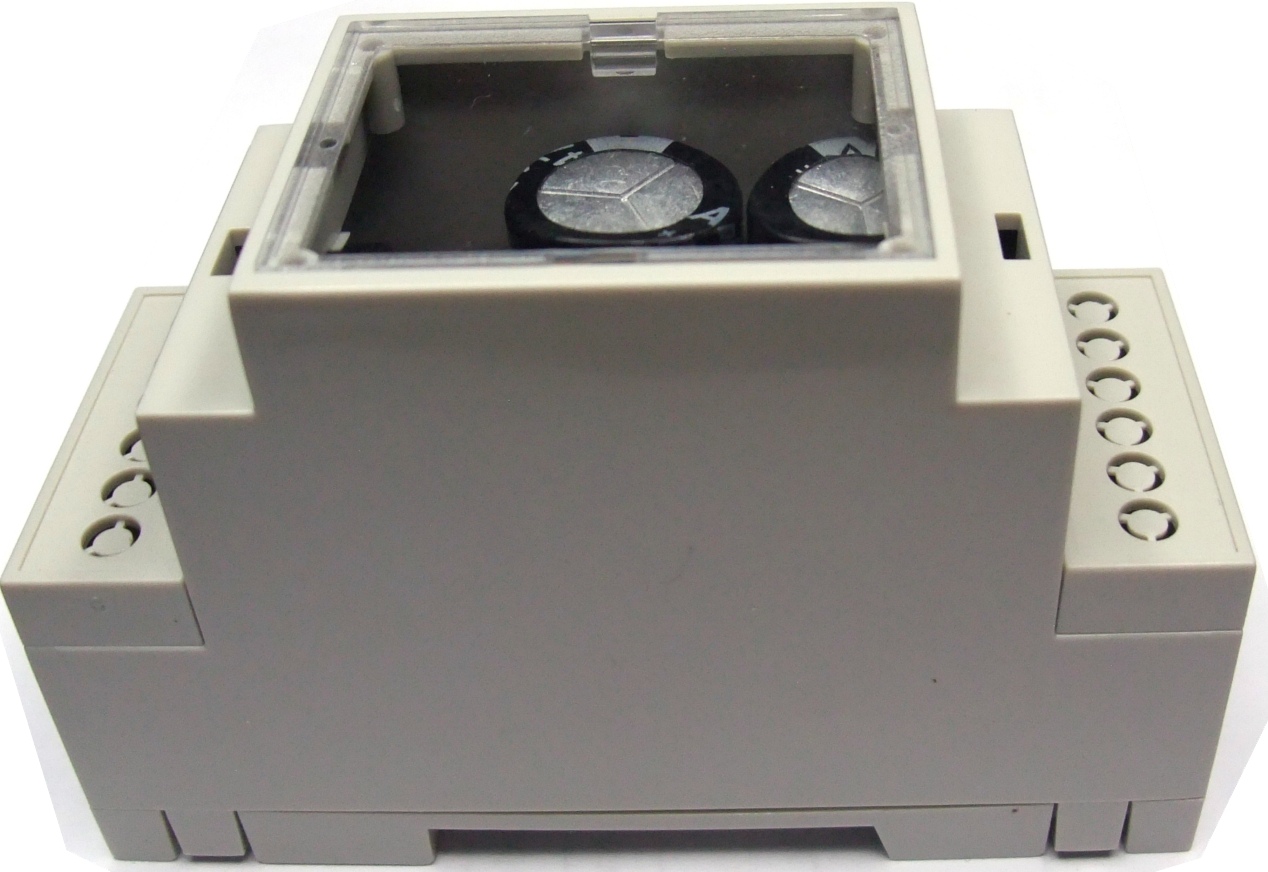

This self assembly electronic kit is now available ready to fit in to a DIN rail case. It has the same characteristics as the WSPC1823 and can be used for the same applications.

It is supplied with a high quality PCB and DIN rail enclosure D2MG

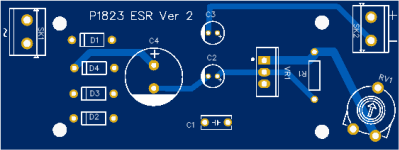

 WSPC1823 Printed Circuit Board DIN Rail Enclosure
Order Code   Each
WSPC1823 Whadda 1A Power Supply Kit 5.85
WSPC1823DR Whadda 1A Power Supply Kit, including PCB and DIN Rail enclosure 11.29
