Studio Mixers
 |
 |
|
Specifications: |
|
Input Channels |
|
|
Microphone XLR |
2k Balanced |
|
Mono Line
Input ¼" Jack |
10k Balanced |
|
Stereo
Line
Input ¼" Jack |
38mV |
|
Tape (Stereo) RCA |
250mV |
|
Equalisation |
|
|
Low |
± 15dB 80Hz |
|
Middle |
± 15dB 2.5kHz |
|
High |
± 15dB 12kHz |
|
Outputs |
|
|
Main
Output
XLR |
+26dB |
|
Record (Stereo) RCA |
750mV/1kΩ |
|
2 x Aux
Sends (Mono) ¼" Jack |
10V |
|
Main Mixer Section |
|
|
Headphones |
8Ω |
|
Frequency Response |
20Hz -
30kHz |
|
THD |
0.01% |
|
SNR |
82dB |
|
Crosstalk |
-85dB |
|
Digital Effects Processor |
Yes |
|
Power
Supply |
230V~50Hz 25 Watts |
|
Dimensions |
310 x
107 x 320mm |
|
Weight |
3.0kg |
|
 |
| Download Handbook > |
 |
|
- 24-bit 16 program DSP effects
- 3-band EQ per channel
- Phantom Power
- 7-band global graphic EQ
-
Internal power supply
-
Balanced main outputs

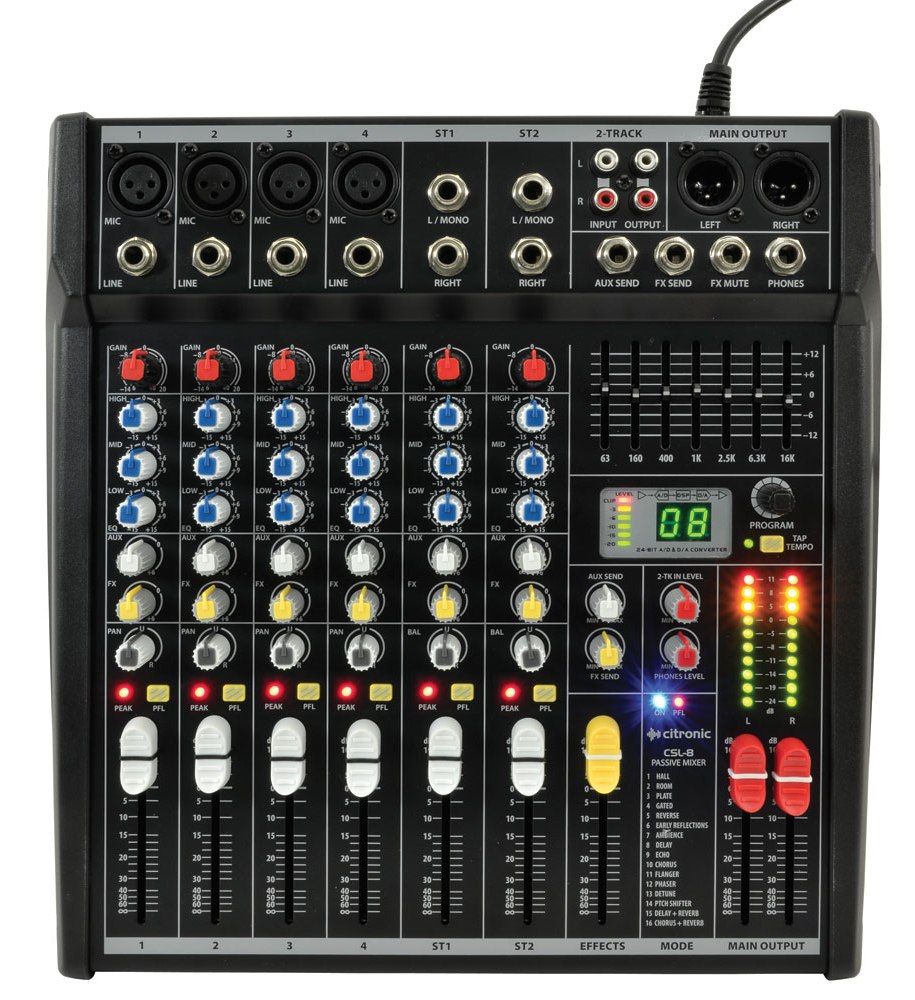

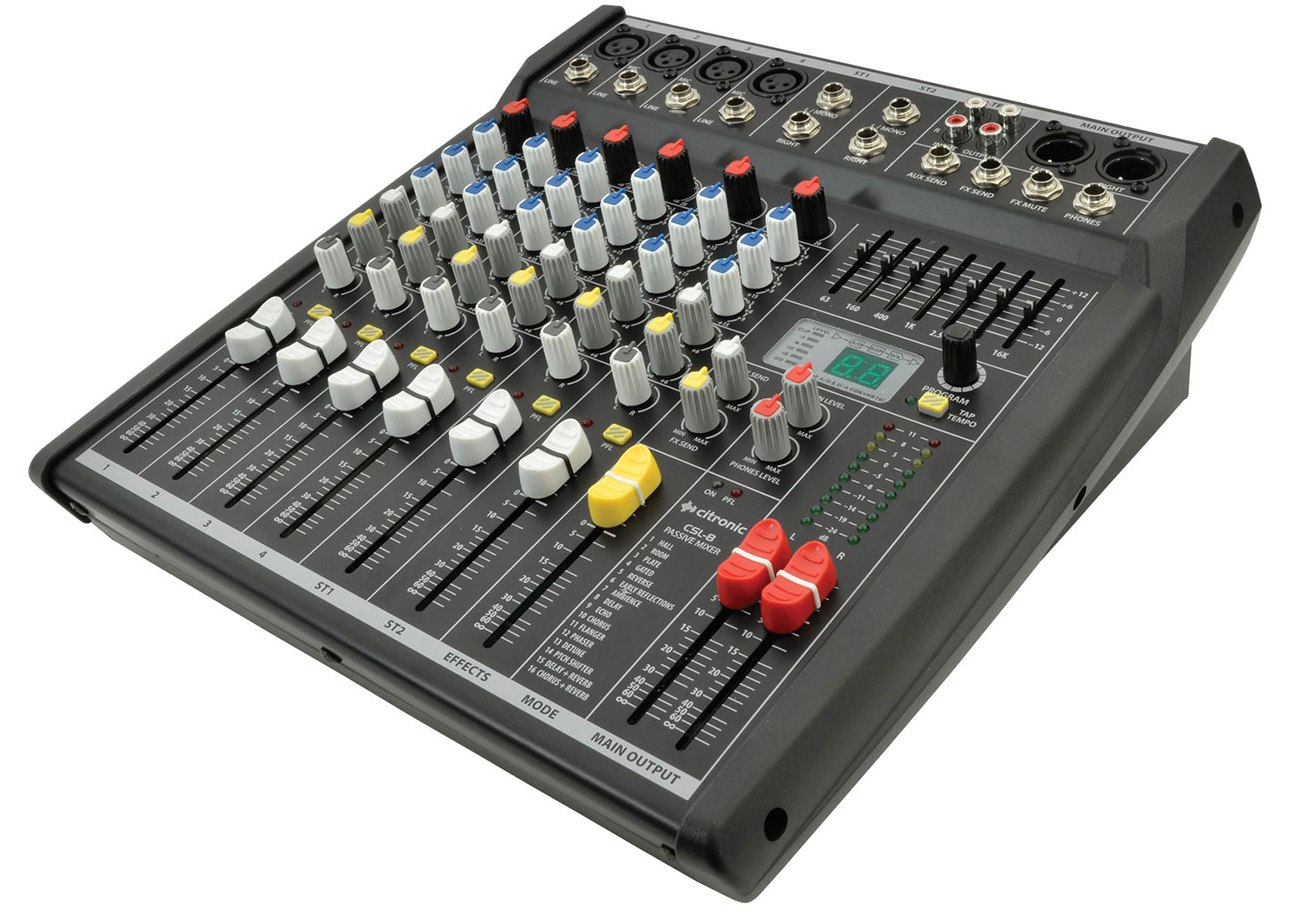

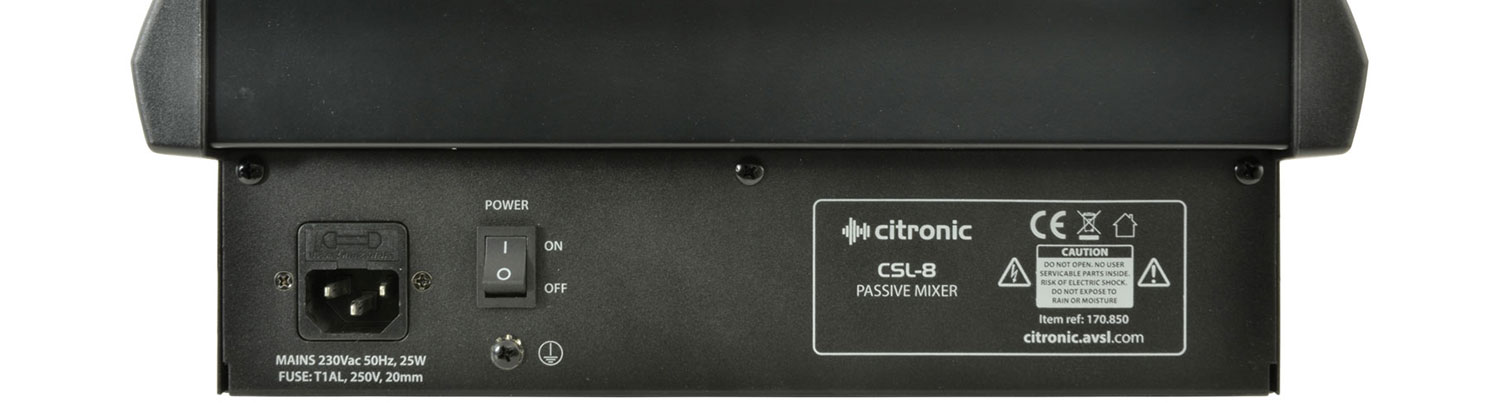

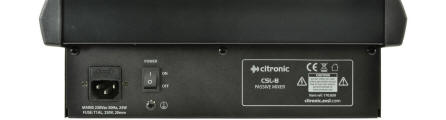

The Citronic CSL-8 is our most compact mixing desk. Ideal
for home use, small studio set ups and solo performers. The CSL-8 console
has balanced microphone and line level inputs and separate stereo inputs for
media player, CD or Keyboards. Each
input channel has individual gain control, 3-band Equaliser, Auxiliary send,
FX send and Pan. All preamps have studio grade, low noise architecture for
the cleanest possible path throughout the signal chain. A 24 Bit Digital Signal Processor
(DSP) which has 16 built-in programmes and includes 'Tap Tempo' a button to
set a tempo for time effects. The Citronic mixer has a overall 7-band graphic
for global tone control of mixer output.
The main mixer outputs are via a per of XLR plugs, A two track
record/playback facility is provided via Phono sockets (RCA). The Headphone
output jack is located on the front console next to the FX remote control
socket.
|
 |
| Order Code |
|
Each |
|
|
445-780 |
Citronic CSL-8 Mixing Console 8-Inputs |
146.65 |
|
|
|
 |
 |
|
Specifications: |
|
Input Channels |
|
|
Microphone XLR |
2k Balanced |
|
Mono Line
Input ¼" Jack |
10k Balanced |
|
Stereo
Line
Input ¼" Jack |
38mV |
|
Tape (Stereo) RCA |
250mV |
|
Equalisation |
|
|
Low |
± 15dB 80Hz |
|
Middle |
± 15dB 2.5kHz |
|
High |
± 15dB 12kHz |
|
Outputs |
|
|
Main
Output
XLR |
+26dB |
|
Record (Stereo) RCA |
750mV/1kΩ |
|
2 x Aux
Sends (Mono) ¼" Jack |
10V |
|
Main Mixer Section |
|
|
Headphones |
8Ω |
|
Frequency Response |
20Hz -
30kHz |
|
THD |
0.01% |
|
SNR |
82dB |
|
Crosstalk |
-85dB |
|
Digital Effects Processor |
Yes |
|
Power
Supply |
230V~50Hz 25 Watts |
|
Dimensions |
360 x
320 x 107mm |
|
Weight |
3.5kg |
|
|
| Download Handbook > |
|
|
- 24-bit 16 program DSP effects
- 3-band EQ per channel
- 7-band global graphic EQ
- 48v Phantom Power
-
Internal power supply
-
Balanced main outputs

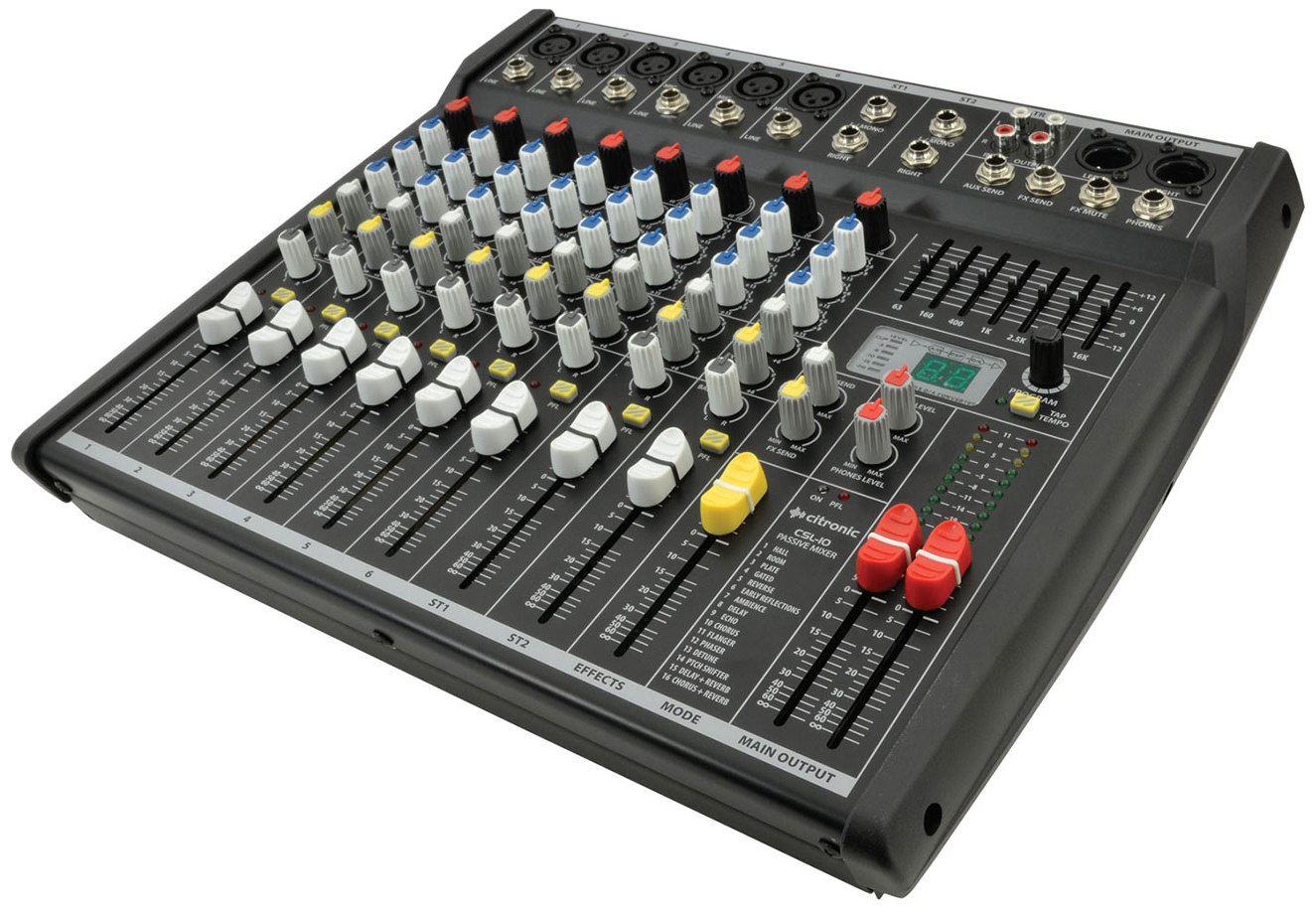

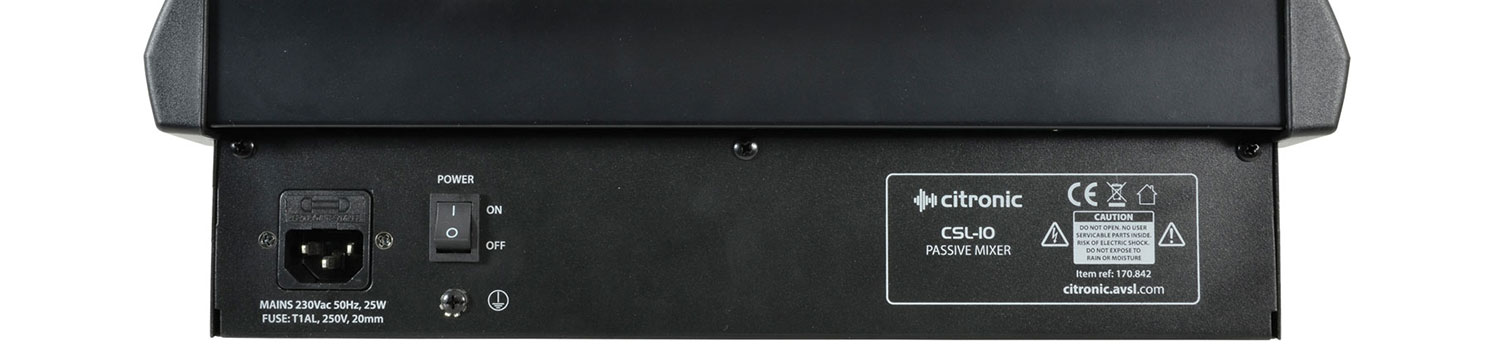

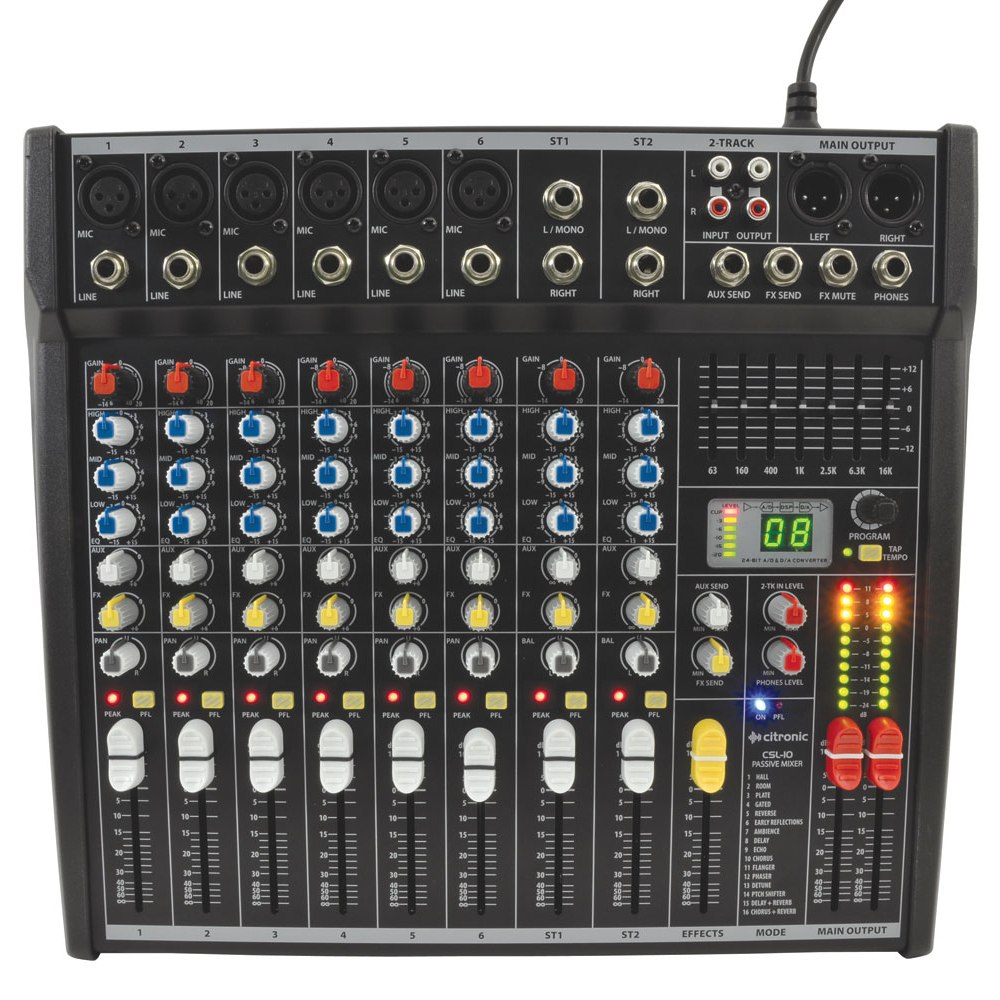

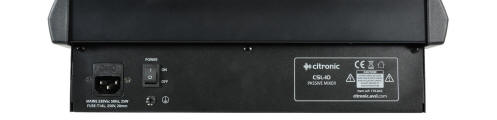

The Citronic CSL-10 is a compact mixing desk. Ideal for
home use, studio set ups and solo performers. The CSL-10 console has balanced microphone
and line level inputs and separate stereo inputs for media player, CD or
Keyboards. Each
input channel has individual gain control, 3-band Equaliser, Auxiliary send,
FX send and Pan. All preamps have studio grade, low noise architecture for
the cleanest possible path throughout the signal chain. A 24 Bit Digital Signal Processor
(DSP) which has 16 built-in programmes and includes 'Tap Tempo' a button to
set a tempo for time effects. The Citronic mixer has a overall 7-band graphic
for global tone control of mixer output.
The main mixer outputs are via a per of XLR plugs, A two track
record/playback facility is provided via Phono sockets (RCA). The Headphone
output jack is located on the front console next to the FX remote control
socket.
|
 |
| Order Code |
|
Each |
|
|
445-781 |
Citronic CSL-10 Mixer 10-Inputs |
158.21 |
|
|
|
 |
 |
|
Specifications: |
|
Input Channels |
|
|
Microphone XLR |
2k Balanced |
|
Mono Line
Input ¼" Jack |
10k Balanced |
|
Stereo
Line
Input ¼" Jack |
38mV |
|
Tape (Stereo) RCA |
250mV |
|
Equalisation |
|
|
Low |
± 15dB 80Hz |
|
Middle |
± 15dB 2.5kHz |
|
High |
± 15dB 12kHz |
|
Outputs |
|
|
Main
Output
XLR |
+26dB |
|
Record (Stereo) RCA |
750mV/1kΩ |
|
2 x Aux
Sends (Mono) ¼" Jack |
10V |
|
Main Mixer Section |
|
|
Headphones |
8Ω |
|
Frequency Response |
20Hz -
30kHz |
|
THD |
0.01% |
|
SNR |
82dB |
|
Crosstalk |
-85dB |
|
Digital Effects Processor |
Yes |
|
Power
Supply |
230V~50Hz 25 Watts |
|
Dimensions |
475 x
320 x 107mm |
|
Weight |
4.5kg |
|
|
| Download Handbook > |
|
|
- 24-bit 16 program DSP effects
- 3-band EQ per channel
- Phantom Power
- 7-band global graphic EQ
-
Internal power supply
-
Balanced main outputs

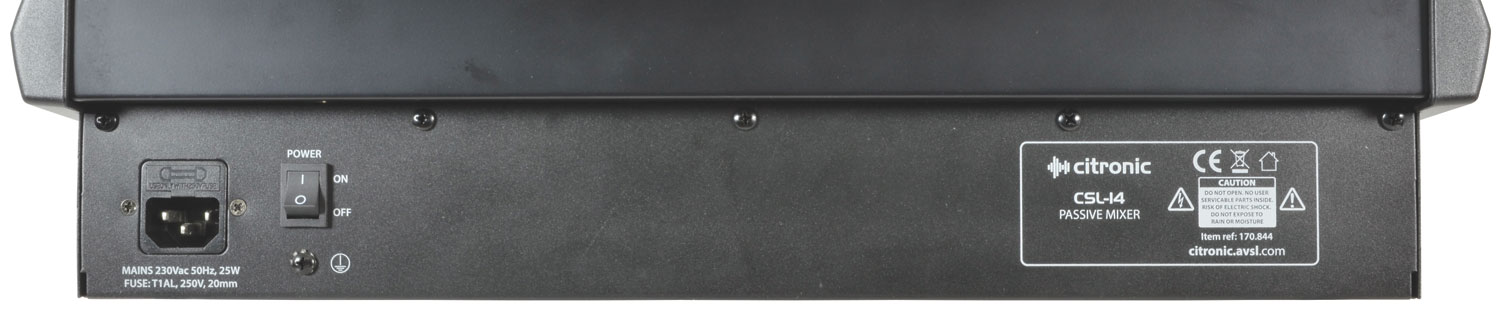

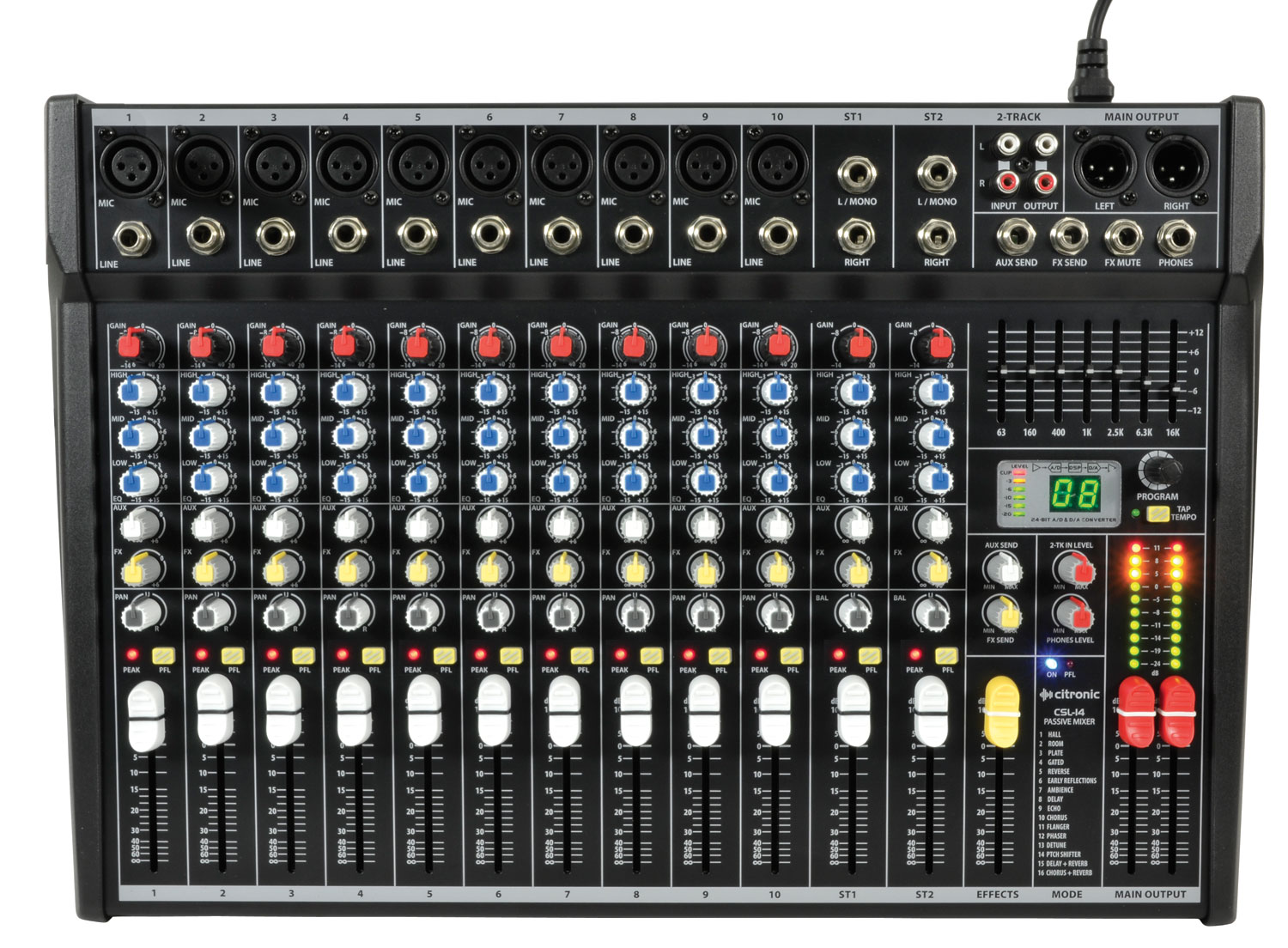

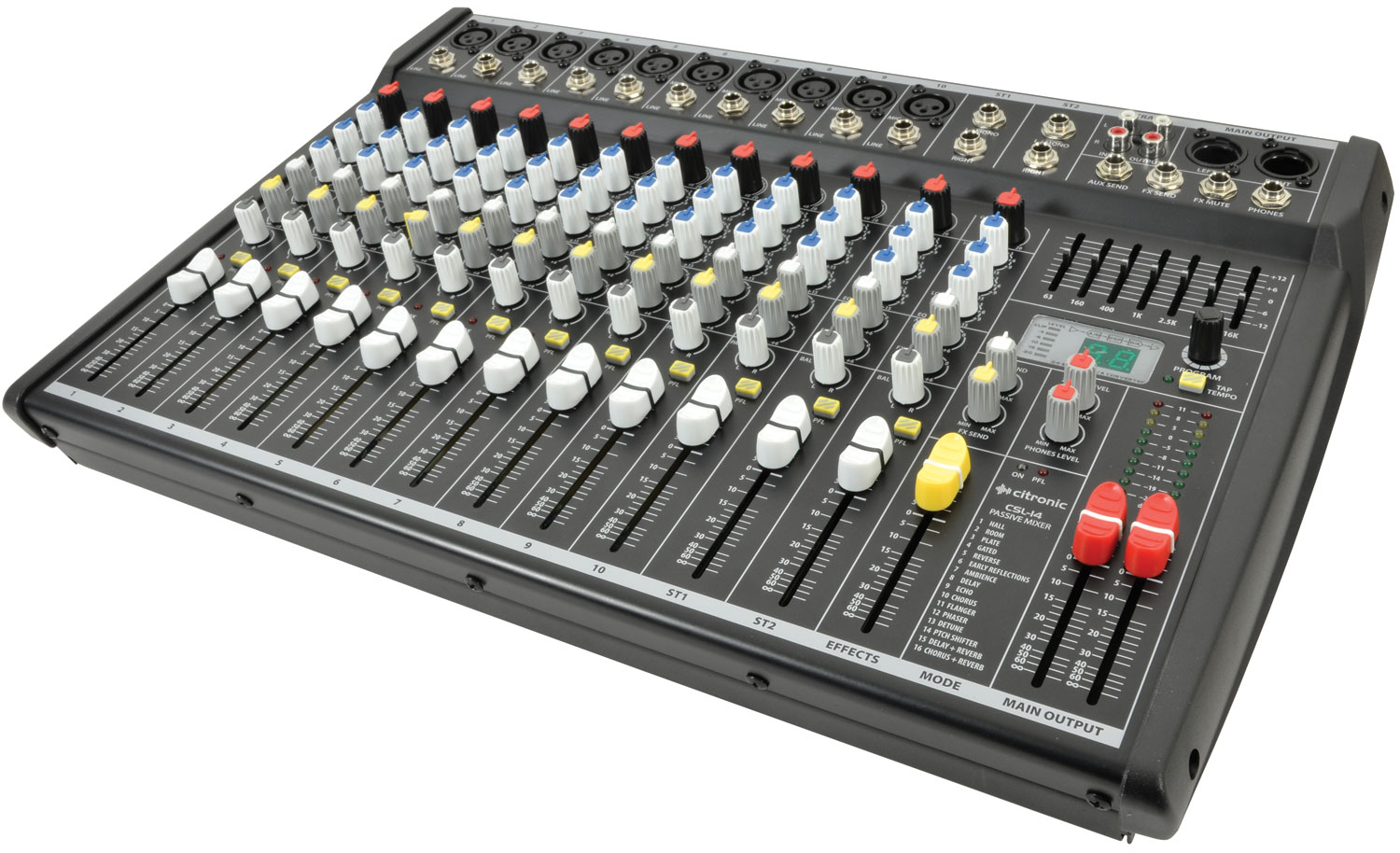

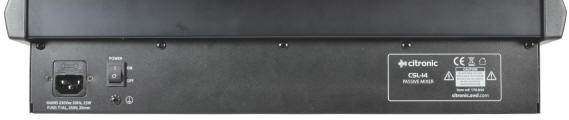

The Citronic CSL-14 is a compact mixing desk. Ideal for
theatrical groups, studios and bands. The CSL-14 console has balanced microphone
and line level inputs and separate stereo inputs for media player, CD or
Keyboards. Each
input channel has individual gain control, 3-band Equaliser, Auxiliary send,
FX send and Pan. All preamps have studio grade, low noise architecture for
the cleanest possible path throughout the signal chain. A 24 Bit Digital Signal Processor
(DSP) which has 16 built-in programmes and includes 'Tap Tempo' a button to
set a tempo for time effects. The Citronic mixer has a overall 7-band graphic
for global tone control of mixer output.
The main mixer outputs are via a per of XLR plugs, A two track
record/playback facility is provided via Phono sockets (RCA). The Headphone
output jack is located on the front console next to the FX remote control
socket.
|
 |
| Order Code |
|
Each |
|
|
445-782 |
Citronic CSL-14 Mixing Desk 14-Inputs |
203.52 |
|
|
|
 |
 |
|
Specifications: |
|
Input Channels |
|
|
Microphone XLR/¼" Jack |
0.5mV Balanced |
|
Mono Line
Input ¼" Jack |
1mV Balance |
|
Stereo
Line
Input ¼" Jack |
10mV Balanced |
|
Insert
¼" Jack |
100mV |
|
Tape (Stereo) RCA |
100mV |
|
Auxiliary (Stereo) RCA |
100mV |
|
Equalisation |
|
|
Low |
± 15dB 80Hz |
|
Middle |
± 15dB
100 - 2.5kHz |
|
High |
± 15dB 12kHz |
|
Outputs |
|
|
Main
Output
¼" Jack Socket |
1.5V Balanced |
|
Control Room |
2V |
|
Record (Stereo) RCA |
750mV/1kΩ |
|
2 x Aux
Sends (Mono) ¼" Jack |
9.5V |
|
Main Mixer Section |
|
|
Headphones |
30 - 600Ω |
|
Frequency Response |
22Hz - 20kHz |
|
THD |
0.01% |
|
Signal to Nose Ratio (SNR) |
dB |
|
Crosstalk |
-75dB |
|
Digital Effects Processor |
16
effects |
|
Phantom Power |
48V |
|
Power
Supply |
230V~50Hz 30 Watts |
|
Dimensions |
622 x
402 x 108mm |
|
Weight |
6.3kg |
|
|
| Download Handbook > |
|
|
- Integral USB player/recorder with BT receiver
- 24-bit DSP effects with 16 programs
- 14 mono balanced XLR/jack inputs
- 2 stereo jack inputs
- 7-band graphic EQ
- Switchable +48V phantom power

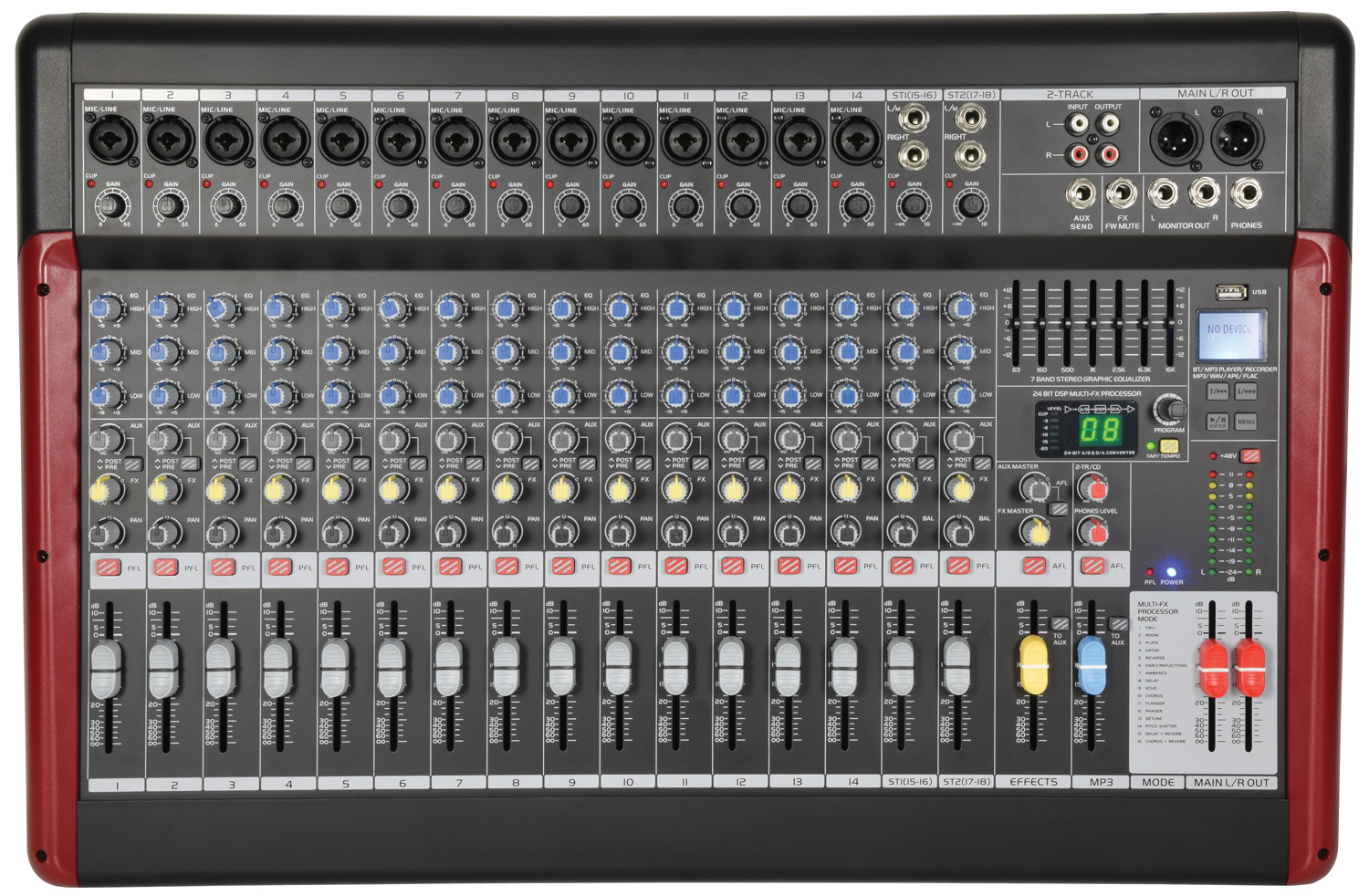

Citronic CSX-18 live mixing console with 14 mono mic/line inputs on XLR/jack
and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable
pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom
power is switchable to all XLR inputs for condenser microphones and active DI
boxes. Internal effects take the form of a 16-program 24-bit DSP engine with
independent level fader and AFL switch for monitoring. An inbuilt media player
can accept a USB memory stick for playback of stored audio tracks and can also
record the mix output for documenting rehearsals or performances. B/T wireless
compatibility enables pairing with a smart phone or tablet for remote playback.
Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from
master faders to left & right balanced XLR outputs. A 2-track RCA line input has
a level control for mixing in a playback source. 2-track RCA output can be
connected on to recording equipment or as an additional output feed if required.
Low noise and clean audio path with enough features and routing options for live
performances, conferences and theatre productions. |
 |
| Order Code |
|
Each |
|
|
448-885 |
Citronic CSX-18 Mixing Console with 18 Channels |
215.32 |
|
|
|
