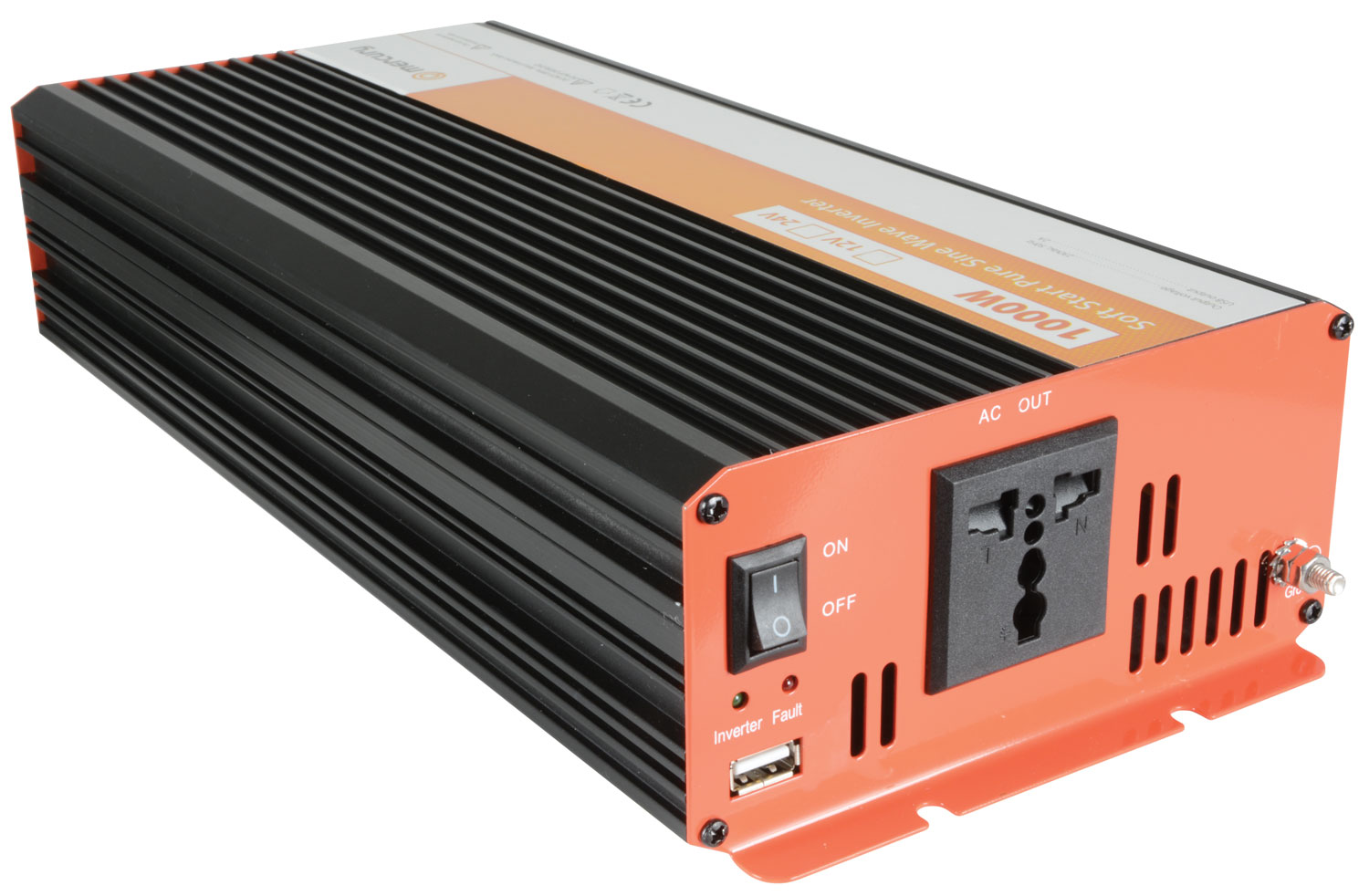

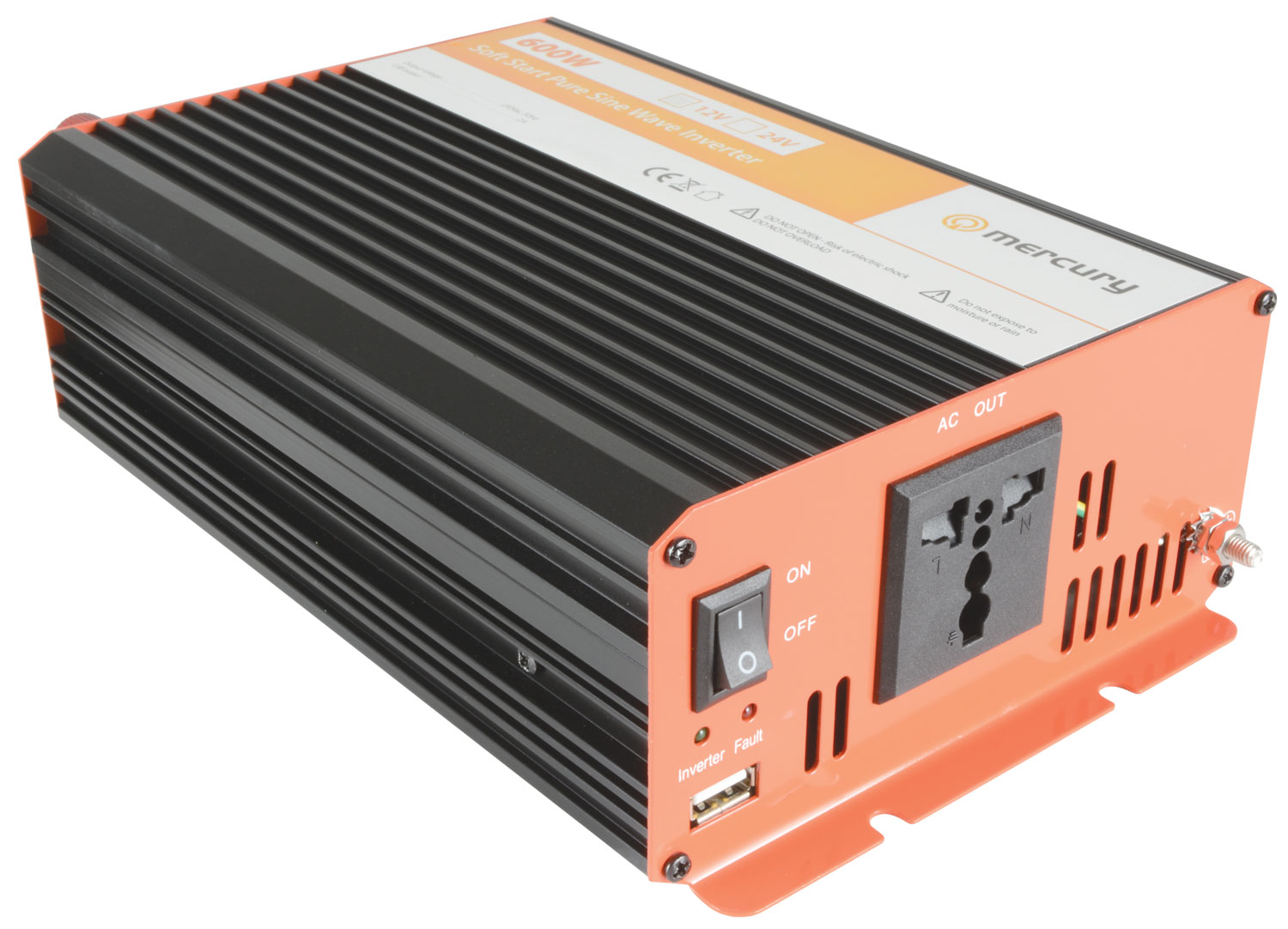

The IPS1000-12 is a 1000 Watt
power inverter which use a pure sine wave to produce 230VAC mains from a
12V battery or 12V DC power supply. The inverter is over 90% efficient
with high accuracy output waveform with less than 4% Total Harmonic
Distortion (THD). It utilises a soft start on power up to minimise
inverter shut down we supplying inductive loads. It has low voltage and
over voltage input protection, short circuit and overload output
protection. The unit is fitted with temperature controlled cooling fan

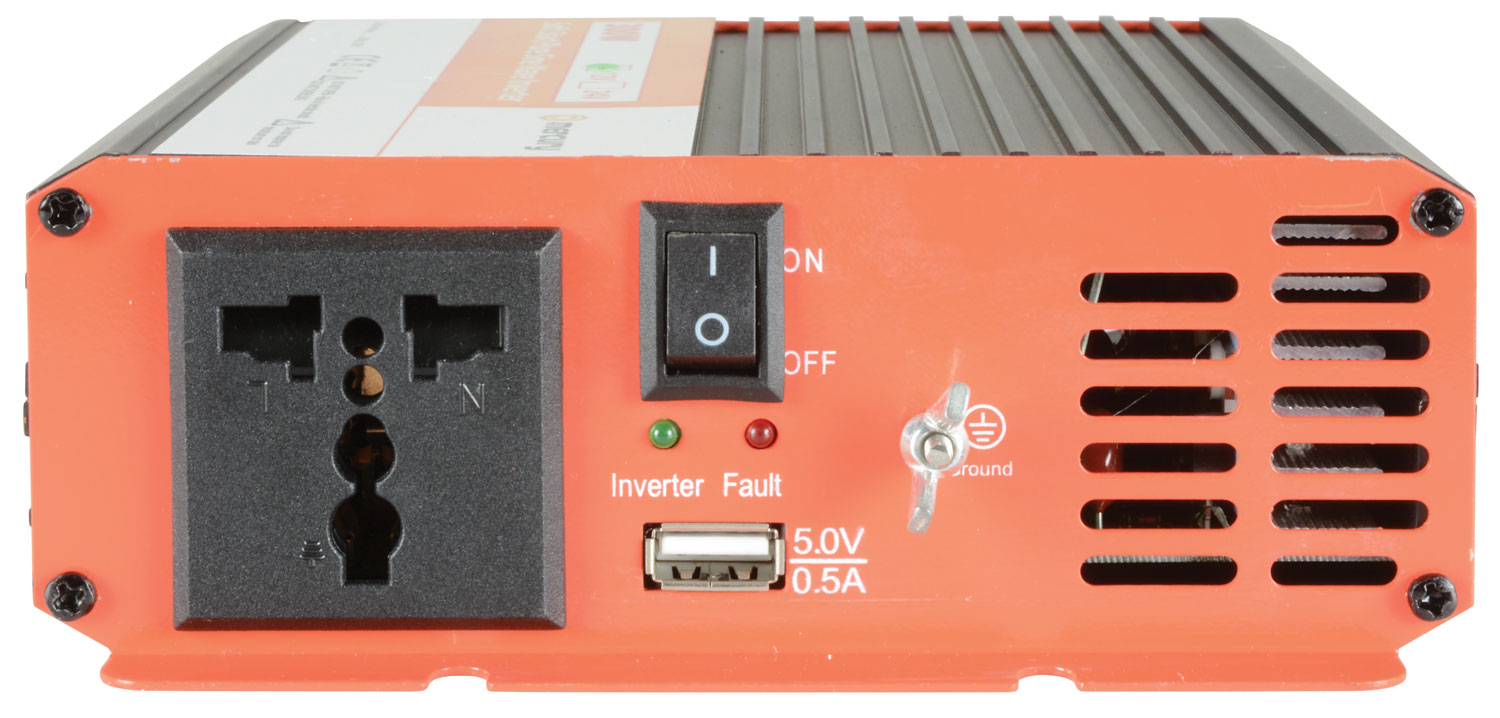

and has LED and audible fault indication. The 1000 Watt inverter has a
1000mA USB output socket to directly charge portable media devices. It
is perfect for use while camping or caravanning or as a means to convert
charged batteries for back-up power in case of a power cut. This
inverter is best suited for all your electronic appliances, TV sets,
Sound Systems, CD and Media Players, Computers and Monitors. The pure
sine wave inverter is most suited for inductive devices,
fridges/freezers and motor driven appliances.
Ensure the appliance is well within the inverter output power rating.
We recommend using an inverter capable of supplying a minimum of 3 times
the device's rated power to avoid damage to the inverter by any current
surge.
The IPS1000-12 inverter

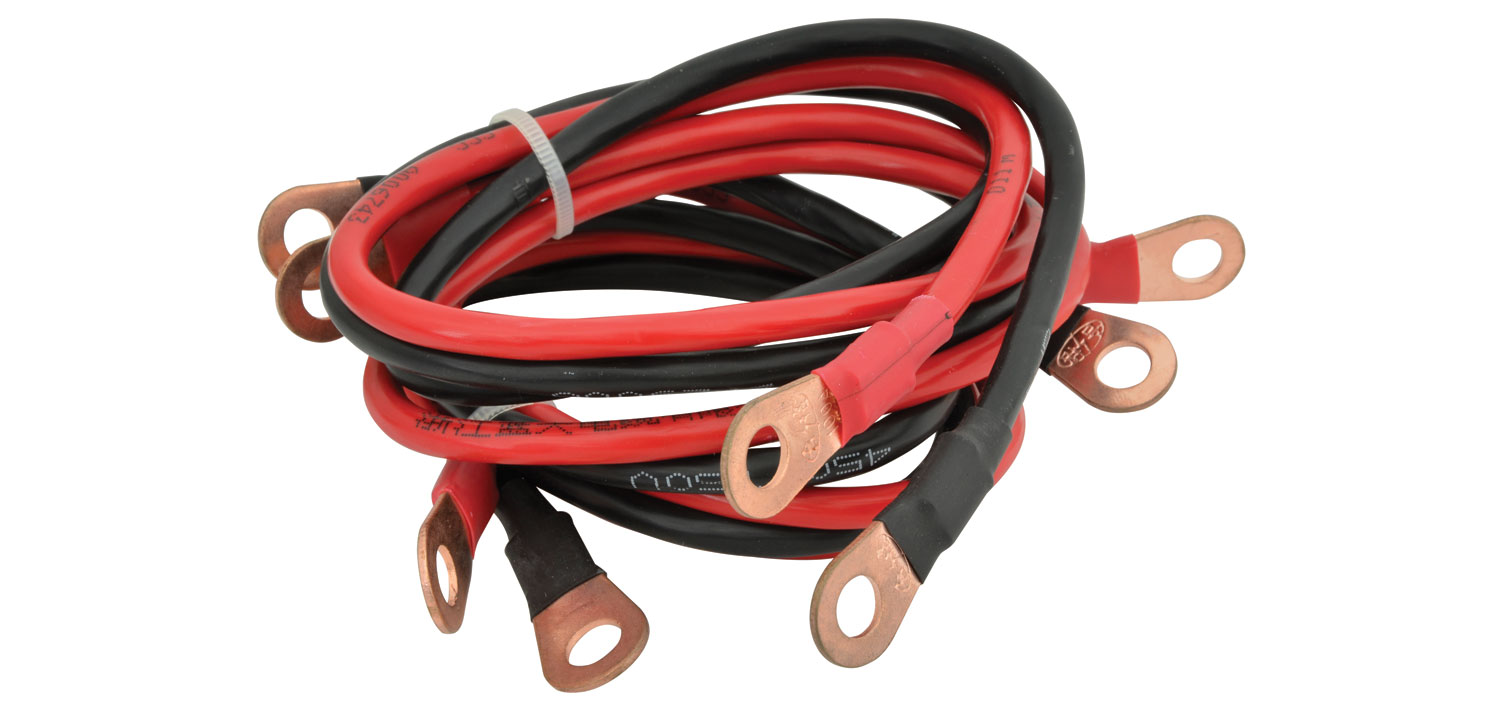

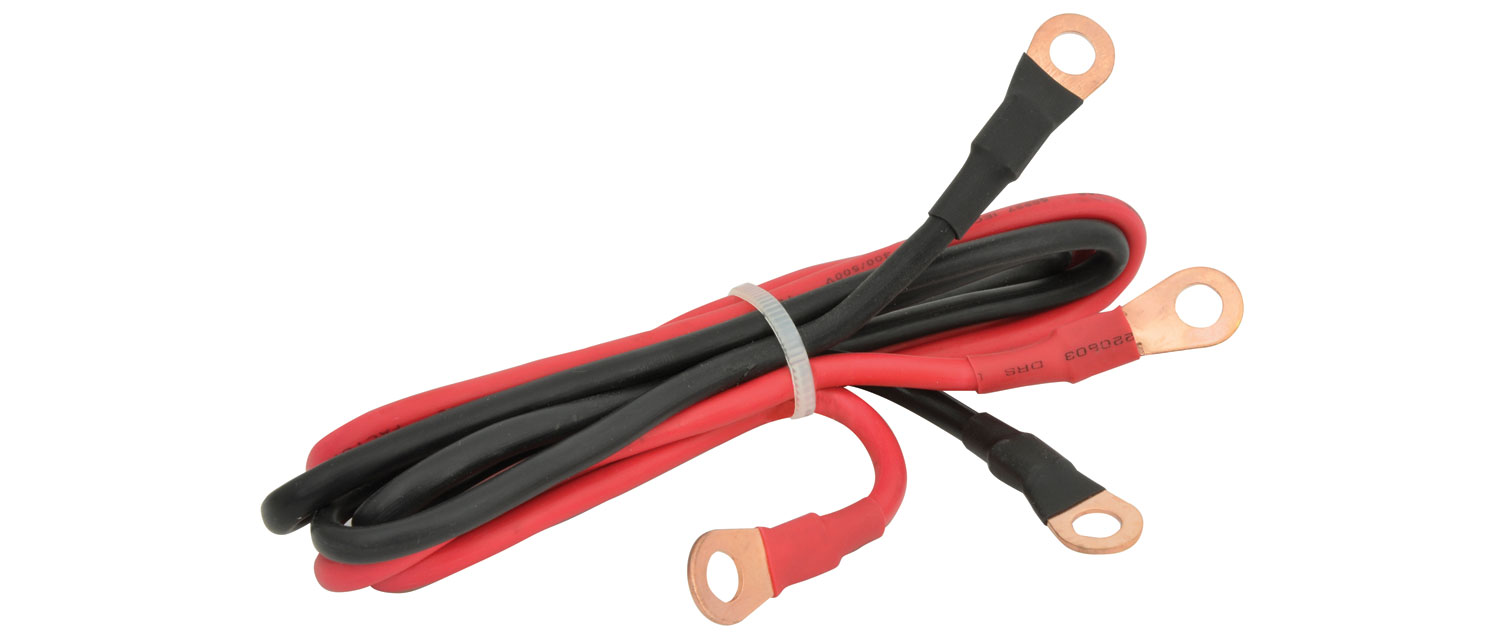

requires a battery with a minimum capacity of 160Ah connected with
10.0mm˛ cables. |
