Communication Cable

High quality unshielded networking cable for transmission of high rate data information. Complies with ISO/IEC 11801 and EIA/TIA 568A standards. The cable has 4 twisted pairs of copper conductors with flame retardant grey PVC sheath available in 100M Reel or we stock a box (305m) of copper clad aluminium (CCA) economy network cable.

Order Code	Impedance	Capacitance	Strands	Cores	Size	Length
056-410	100Ω	330pf/m	1/0.511mm	4 Twisted Pairs	5.0mmØ	100m
056-415	100Ω	56pf/km	1/0.48mm	4 Twisted Pairs	5.0mmØ	305m

Order Code		Reel
056-410	High quality networking data cable 100m	10.75
056-415	Economy CCA networking data cable 305m	39.79

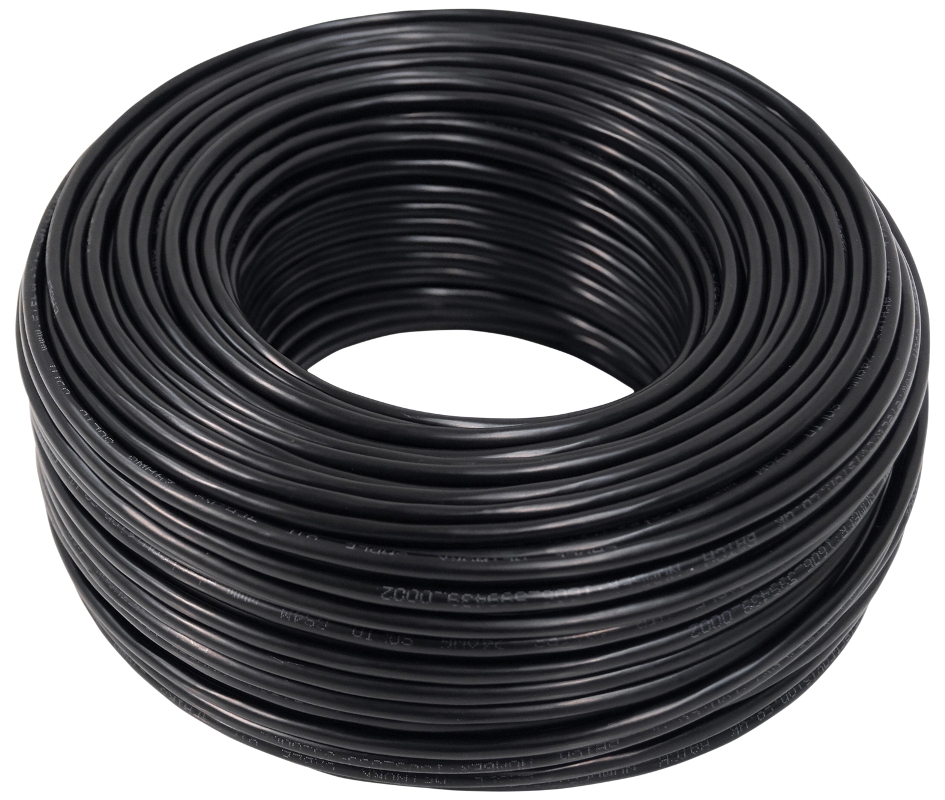

Outdoor CCA ethernet network cable (4 pair UTP) is CCA (24 AWG) and supplied in a continuous 100m length (328ft). This product is an ideal alternative to cable utilising copper clad alloy (CCA) instead of copper conduction and, therefore, reducing the cost significantly. Manufactured in accordance with ISO11801 and fully ROHS 2002 95EC compliant. Comes as a PVC wrap.

Order Code	Impedance	Capacitance	Strands	Cores	Size	Length
056-410	100Ω	330pf/m	1/0.511mm	4 Twisted Pairs	5.0mmØ	100m

Order Code		Reel
056-450	Outdoor UTP CAT5e Structured Data Cable	15.60

CW1308 Internal telephone cable, solid drawn copper covered steel conductors with banded colour coded insulation and white PVC outer sheath (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Cores

Size

Jacket Colour

056-010

TE10

0.20mm²

1/0.5mm

2 Twisted Pairs

3.6mm²

White

056-015

TE11

0.20mm²

1/0.5mm

3 Twisted Pairs

4.5mm²

White

Order Code		Metre	Reel
056-010	White 4 Core Telephone Cable	0.30	14.70
056-015	White 6 Core Telephone Cable	0.55	18.90

A range of multicore cables suitable for use in security, alarm and any other low voltage applications. Stranded tinned copper clad aluminium conductors with colour coded insulation and white PVC sheath. Maximum voltage 50V, maximum current per core 1A (100m reel)

Order Code	Ref	Cross Sectional Area	Strands	Cores	Size	Jacket Colour
056-310		0.22mm²	7/0.2mm	4	3.5mm²	White
056-315		0.22mm²	7/0.2mm	6	4.2mm²	White
056-320		0.22mm²	7/0.2mm	8	4.6mm²	White

Order Code		Metre	Reel
056-310	White 4 Core Alarm Cable	0.35	15.10
056-315	White 6 Core Alarm Cable	0.50	19.60
056-320	White 8 Core Alarm Cable	0.60	25.00

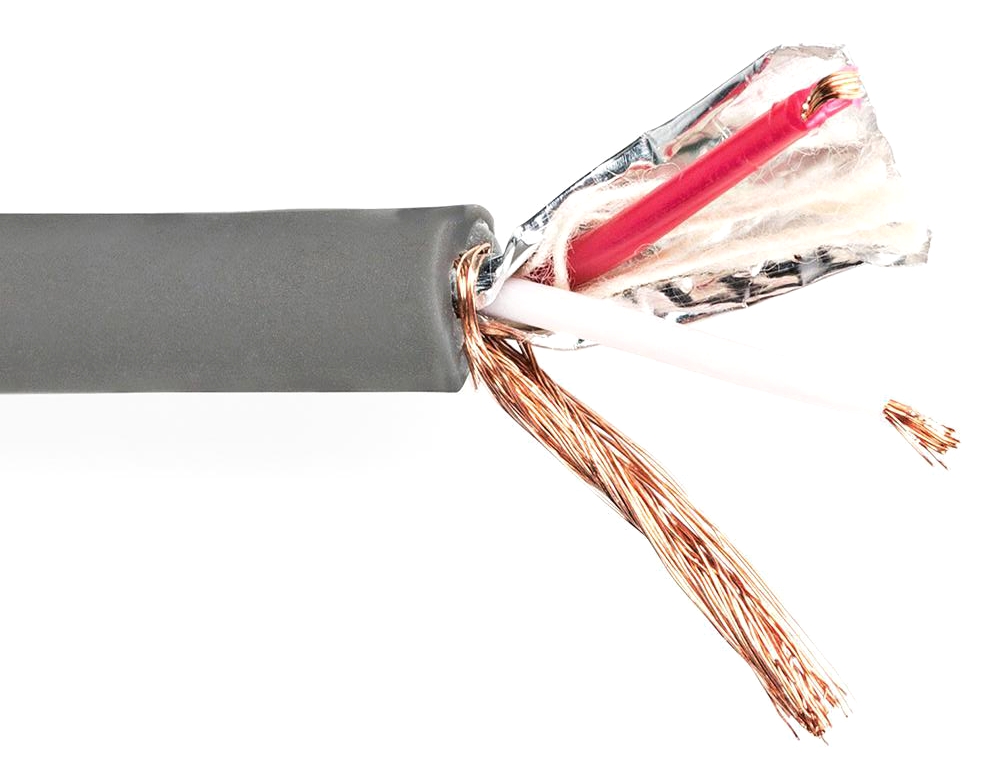

A Grey balanced 110Ω DMX cable is specifically designed for digital signal transmission according to the DMX and AES-EBU standards. With a durable shielding which protects against all kinds of interferences, such as electromagnetic fields, this balanced DMX cable lives up to an excellent performance standard. Additionally, it is equipped with a flexible PVC jacket, enabling you to apply the cable under every circumstance, even if there is little to almost no space, suitable for most DMX lighting installations. (100m reel)
