LCD Displays

Specifications:

Screen Size	mm
Power Supply	3-12V
Dimensions	mm
Weight	g

Data Sheet 717-040 >

Standard seven segment format with a decimal point between digits and a colon between alternative digits. The transflective display gives black segments on a silvered background which can be back lit if required. Supplied with connectors on 0.1” pitch.

Order Code		Each
717-040	4 Digit LCD	4.10

Specifications:
Model	PC1602WRS-KWA-E

Screen Size	36 x 10mm
Power Supply	5Vdc
Dimensions	mm
Weight	13g

Liquid Crystal Display 16 x 2, uses 5 x 7 dots to generate characters. LCD type: STN, Gray, Positive, Transflective, Normal Temp. Duty-bias: 1/16 - 1/5. Suitable for Velleman K8095 MP3 Player Kit

Order Code		Each
717-125	16 x 2 STN LCD Module	15.87

20 x 4 Backlit (Yellow LED) Supertwist LCD module

Specifications:
Model	717-120
Character Size	2.95 x 4.75mm
Viewing Area	77 x 25.2
Dimensions	98 x 60 x 13.6mm

Data Sheet 717-121 >

A 20 x 4 LCD display that has a transflective type 6 o'clock display with a STN positive yellow/green LCD module that has a yellow/green LED backlight.

Order Code		Each
717-121	20 x 4 Backlit (Yellow LED) Supertwist LCD module	11.06

Specifications:
Model	717-100
Character Size	2.96 x 5.56
Viewing Area	61.0 x 15.8
Dimensions	80 x 36 x 9.7mm
Model	717-105
Character Size	2.96 x 5.56
Viewing Area	99 x 24
Dimensions	122 x 44 x 13.6mm
Model	717-120
Character Size	2.95 x 4.75
Viewing Area	76.0 x 25.2
Dimensions	98 x 60 x 10.4mm

Data Sheet 717-100 >

Data Sheet 717-105 >

Data Sheet 717-120 >

Intelligent alphanumeric dot matrix display modules featuring Supertwist Nematic (STN) technology which provides a superior viewing angle and higher contrast over conventional designs. Each module uses a 7 x 5 dot matrix format, has a cursor and is capable of displaying 224 different characters and symbols. An on-board RAM facility also enables the user to produce any character pattern required. Easily interfaced to 4 or 8 bit microprocessors. Single 5V supply, low power consumption-typically 1mA

Order Code		Each
717-100	16 x 2 STN LCD Module	7.21
717-105	16 x 2 STN LCD Module Backlit	10.80
717-120	20 x 4 STN LCD Module	21.30

Specifications:
Model	VMA412
Resolution	240 x 320
Colour Depth	262 000
System Interface	8-bits, 9-bits, 16-bits, 18-bits interface with 8080-I /8080-II series MCU 6-bits, 16-bits, 18-bits RGB interface with graphic controller 3-line / 4-line serial interface
Display Mode	full colour mode (Idle mode OFF): 262 000 colour (selectable colour depth mode by software) reduced colour mode (Idle mode ON): 8-colour
Dimensions	mm

Data Sheet >

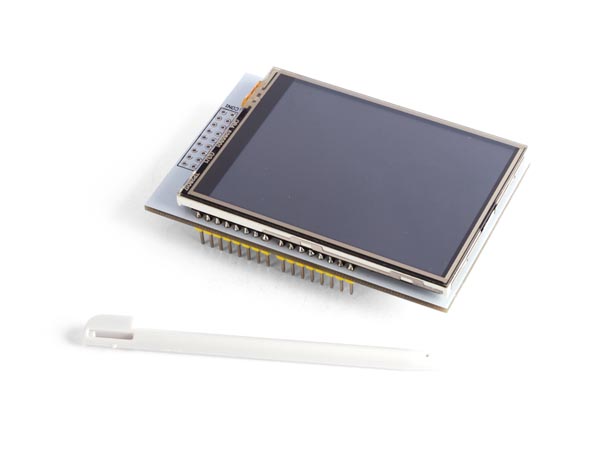

This is a 2.8" Touch screen Module with 262 000 colour depth up to 18 bits per pixel and 240 x 320 resolution. Designed to fit with every AVR-based Arduino (like UNO, Leonardo etc.).

Order Code		Each
WPSH412	Whadda 2.8" Touch Screen for UNO/MEGA	16.97

Specifications:

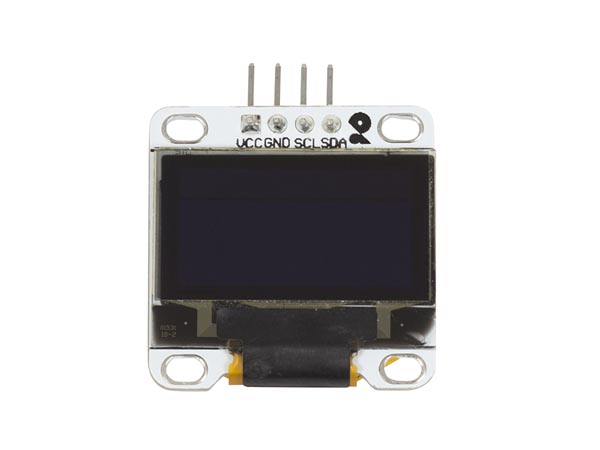

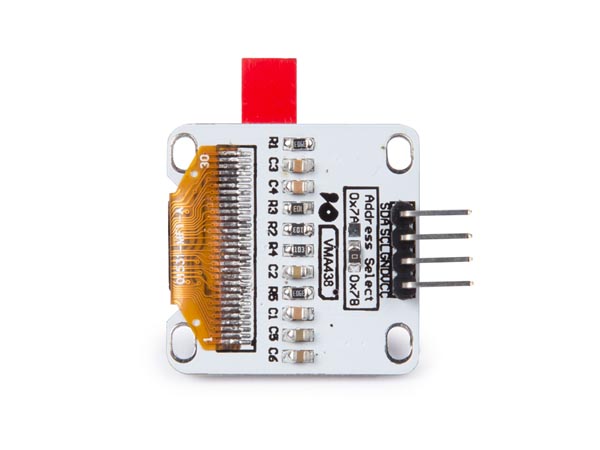

Model	WPI438
Resolution	128 x 64
Colour Depth	262 000
Viewing Angle	> 160°
Operating Voltage	3 - 5 Vdc
Library	U8glib
Interface	I2C
Driver	SSD1306
OLED Colour	Blue
I/O Level	3.3 and 5V
Dimensions	27 x 27mm
